Product features:

• 1, displacement travel from 100~2000mm
• 2, using M5 screw teeth for connection
• 3, linear accuracy is positive and negative 0.05% full scale
• 4, the reproducibility of 0.01mm
• 5, unlimited resolution
• 6, not by external noise interference
• 7, displacement speed of up to 5m/s (optional 10m/s)
• 8, the protection level is IP40
• 9, the working temperature is -30~+100 degrees C
• 10, the service life of <25 million meters or <100 million times

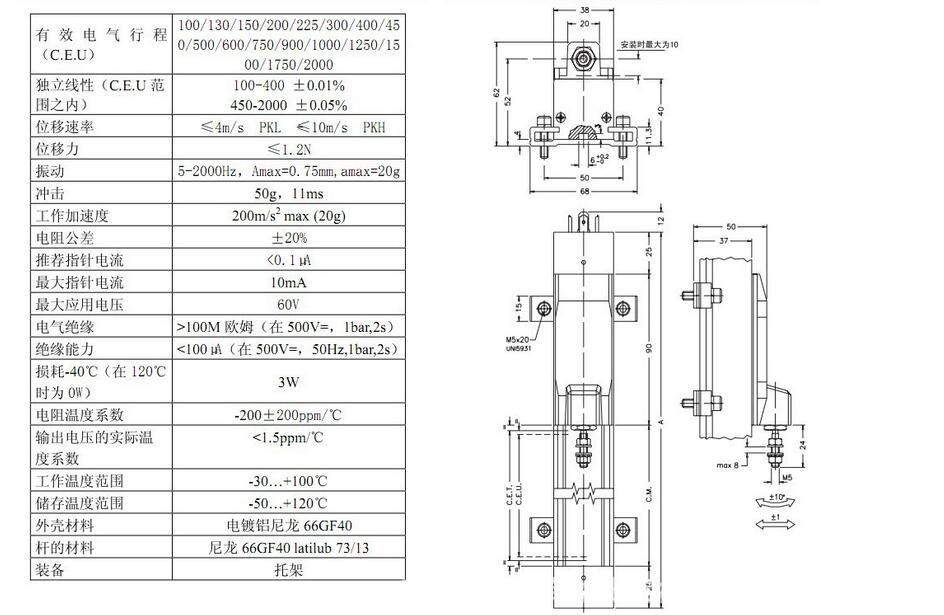

Product specifications:

• 1. 130/ 100/ 150/ 225/ 200/ 275/ 175/ 300/ 375/ 400/ 500/ 600/ 450/ 750/ 900/ 1000/ 1250/ 1500/ 1750/ 2000
• 2, displacement force <1.2N
• 3, vibration 5~2000Hz, the maximum amplitude of 0.75mm (20g)
• 4, vibration 11ms, =50g
• 5, the operation of <200m/s (20g) - acceleration
• 6, the impedance tolerance is plus or minus 20%
• 7, cursor current A mu <0.1
• 8, the maximum current <10mA
• 9, the maximum allowable voltage <60V
• 10, insulation impedance >100M (500V, 1Bar, 2S)
• 11, insulation strength of <100 A (500V, 1Bar, 2S, 50Hz)
• 12, power consumption =3W
• 13, each of <1.5ppm/ ~ C ~ C drift
• 14, storage temperature is -50~+120 degrees C

Fast Electronics Co., Ltd is a factory-directly-sale office for sensor electronic components since 2007,we specialized in all kinds of sensors components like gas sensors ,human body infrared sensors, soil moisture sensor, current transformer ,residual current detection, electrical fire monitoring ,and also high precision pressure sensor, tension sensor and load cells ,photoelectric switch ,laser diffuse switch , reflection switch and inductive proximity switches sensor  and displacement sensor ,non-contact level sensor switch / liquid level sensor.

With years’ development, we have had developed a complete electronic components supply and distribute system.
Through our importing and exporting of components all around the world, Fast Electronics Co., Ltd can quickly feedback and satisfy customers’ need.

Besides, we have had gained a great reputation in domestic and international market for our experience and market insight, as well as our up-front, proactive, and responsive approach to service, adequate inventory and unwavering commitment to quality.

.We are  a factory directly sale department with with a large inventory ,we have an absolute advantage in price, .welcome to inquiry us !
